⛃ Database Design for UCSY LMS

MIT License GitHubPRs Welcome GitHub issues

📋 Table of Contents

📖 About

This repository documents the formal Database Design and Implementation for the University of Computer Studies, Yangon (UCSY) Learning Management System. It showcases a complete data modeling workflow—from initial requirement analysis and ER Diagramming to optimized SQL schema development.

This project was created for the Fundamental Database Management System (IS-201) course, Faculty of Information Science, Semester III, 2025–2026 Academic Year.

📁 Repository Structure

ucsy-lms-db/
├── design/
│   └── ucsy_lms_db_erd.mdj          # StarUML ER diagram model
├── docs/
│   ├── sem_III_dbms_project.tex      # LaTeX academic report
│   ├── ucsy-logo.png
│   ├── ucsy_lms_db_erd_mysql.png     # ER diagram (MySQL Workbench)
│   ├── ucsy_lms_db_erd_staruml.png   # ER diagram (StarUML)
│   ├── departments.png               # Table data screenshots
│   ├── room.png
│   ├── terms.png
│   ├── sections.png
│   ├── students.png
│   ├── parents.png
│   ├── instructors.png
│   ├── courses.png
│   ├── lectures.png
│   ├── classes.png
│   ├── enrollments.png
│   ├── assessments.png
│   ├── attendance.png
│   ├── resources.png
│   ├── grades.png
│   ├── announcements.png
│   ├── query1.png – query8.png       # Query execution screenshots
├── sql_script/
│   └── ucsy-lms-db.sql              # Main SQL script
├── .gitignore
├── LICENSE
└── README.md

🛠️ Technologies & Tools

Category Tool Purpose
Design StarUML Conceptual & Logical ER Diagrams
Database MySQL (Server/Workbench/Shell) Schema Implementation & Query Execution
Publishing LaTeX Academic Documentation & Formatting
Version Control Git & GitHub Version control and remote hosting

🚀 Getting Started

Prerequisites

  • MySQL Server (v8.0 or compatible)
  • MySQL Workbench (recommended for visual query execution)

Installation

  1. Clone the repository

    git clone https://github.com/ammdevl/ucsy-lms-db.git

  2. Navigate to the project

    cd ucsy-lms-db

  3. Run the SQL script Open sql_script/ucsy-lms-db.sql in MySQL Workbench and execute it. The script will:

    • Drop any existing ucsy_lms_db database
    • Create a fresh database with 16 tables
    • Populate all tables with seed data

Note: The script contains comprehensive seed data including 10 departments, 80 rooms, 10 terms, 60 sections, 112 students, 100 instructors, ~60 courses, and corresponding records across all other tables.

📐 ER Diagram

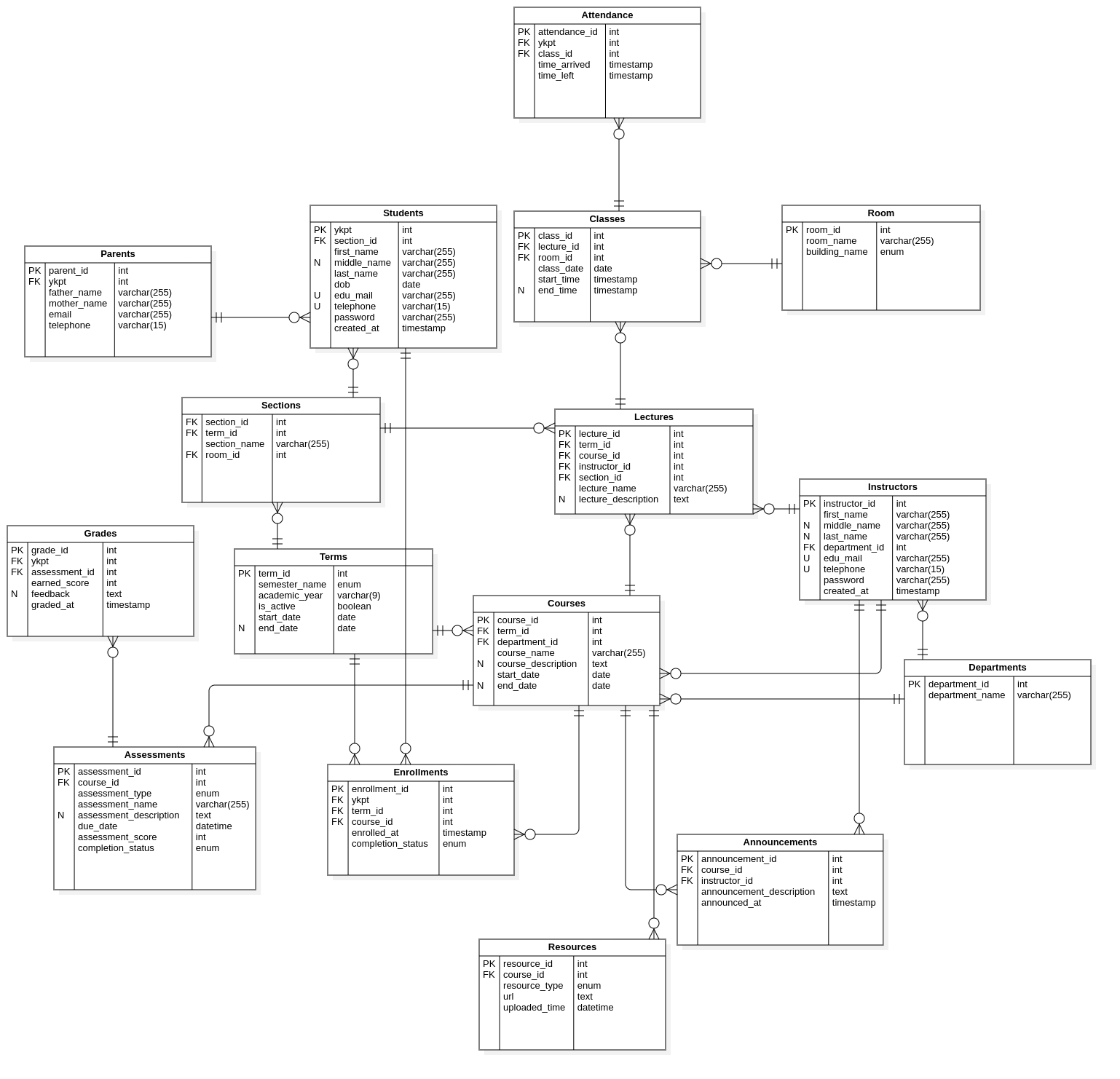

ER Diagram - StarUML

The full ER diagram model can be opened in StarUML using the file at design/ucsy_lms_db_erd.mdj.

📃 Database Design Details

The database includes 16 entities: Departments, Room, Terms, Sections, Students, Parents, Instructors, Courses, Lectures, Classes, Enrollments, Assessments, Announcements, Attendance, Resources, and Grades.

Entities and Attributes

1. Departments

Categorizes the various academic departments within the university.

  • department_id (PK): Unique identifier.
  • department_name: Official name of the department.

2. Room

Stores information about physical locations where classes are held.

  • room_id (PK): Unique identifier.
  • room_name: Name or number of the room.
  • building_name: Campus building (A, B, C, D, E, F, Ext1, or Ext2).

3. Terms

Defines academic periods and their active status.

  • term_id (PK): Unique identifier.
  • semester_name: Roman numeral (I through X).
  • academic_year: School year (e.g., 2023-2024).
  • is_active: Boolean flag for the current term.
  • start_date: Term start date.
  • end_date: Term end date.

4. Sections

Student cohorts assigned to a particular term and room.

  • section_id (PK): Unique identifier.
  • term_id (FK): Reference to the academic term.
  • section_name: Name of the student group.
  • room_id (FK): Primary room assigned to this section.

5. Students

Personal details and academic placement for each student.

  • ykpt (PK): Unique student identifier.
  • term_id (FK): Reference to the assigned term.
  • first_name: First name.
  • middle_name: Middle name.
  • last_name: Last name.
  • dob: Date of birth.
  • edu_mail: Official university email (Unique).
  • telephone: Contact phone number (Unique).
  • password: Encrypted login credential.
  • created_at: Account creation timestamp.

6. Parents

Contact information for parents or guardians.

  • parent_id (PK): Unique identifier.
  • ykpt (FK): Reference to the student.
  • father_name: Father's name.
  • mother_name: Mother's name.
  • email: Parent's email.
  • telephone: Parent's phone number.

7. Instructors

Profiles for faculty members teaching courses.

  • instructor_id (PK): Unique identifier.
  • first_name: First name.
  • middle_name: Middle name.
  • last_name: Last name.
  • department_id (FK): Home department.
  • edu_mail: Official faculty email (Unique).
  • telephone: Contact phone number (Unique).
  • password: Encrypted login credential.
  • created_at: Account creation timestamp.

8. Courses

Individual subjects offered by departments.

  • course_id (PK): Unique identifier.
  • term_id (FK): Assigned term.
  • department_id (FK): Offering department.
  • course_name: Course title.
  • course_description: Content overview.
  • start_date: Course start date.
  • end_date: Course end date.

9. Lectures

Links instructors, courses, and sections to teaching sessions.

  • lecture_id (PK): Unique identifier.
  • term_id (FK): Current term.
  • course_id (FK): Associated course.
  • instructor_id (FK): Teaching instructor.
  • section_id (FK): Attending student section.
  • lecture_name: Lecture title.
  • lecture_description: Topic summary.

10. Classes

Individual scheduled instances of lectures in specific rooms.

  • class_id (PK): Unique identifier.
  • lecture_id (FK): Parent lecture.
  • room_id (FK): Assigned room.
  • class_date: Session date.
  • start_time: Scheduled start.
  • end_time: Scheduled end.

11. Enrollments

Student-course enrollment with progress tracking.

  • enrollment_id (PK): Unique identifier.
  • ykpt (FK): Reference to the student.
  • term_id (FK): Enrollment term.
  • course_id (FK): Enrolled course.
  • enrolled_at: Enrollment timestamp.
  • completion_status: Not Started, In Progress, or Completed.

12. Assessments

Tasks and exams assigned within a course.

  • assessment_id (PK): Unique identifier.
  • course_id (FK): Associated course.
  • assessment_type: Tutorial, Assignment, Lab Test, Quiz, etc.
  • assessment_name: Assessment title.
  • assessment_description: Instructions or details.
  • due_date: Submission deadline.
  • assessment_score: Maximum possible points.
  • completion_status: General status.

13. Announcements

Instructor broadcasts to specific courses.

  • announcement_id (PK): Unique identifier.
  • course_id (FK): Relevant course.
  • instructor_id (FK): Posting instructor.
  • announcement_description: Announcement content.
  • announced_at: Post timestamp.

14. Attendance

Student presence records for class sessions.

  • attendance_id (PK): Unique identifier.
  • ykpt (FK): Reference to the student.
  • class_id (FK): Class session.
  • time_arrived: Arrival timestamp.
  • time_left: Departure timestamp.

15. Resources

Educational materials provided in courses.

  • resource_id (PK): Unique identifier.
  • course_id (FK): Associated course.
  • resource_type: Video, Slides, TextBook, etc.
  • url: Resource web address or file path.
  • uploaded_time: Upload timestamp.

16. Grades

Student performance on specific assessments.

  • grade_id (PK): Unique identifier.
  • ykpt (FK): Student being graded.
  • assessment_id (FK): Specific assessment.
  • earned_score: Points achieved.
  • feedback: Instructor comments.
  • graded_at: Grading timestamp.

Database Relationship — Cardinality

Relationship Type Description
Departments — Instructors One-to-Many One department employs multiple instructors.
Departments — Courses One-to-Many One department manages multiple courses.
Room — Classes One-to-Many One room hosts multiple class sessions.
Terms — Sections One-to-Many One term contains multiple sections.
Terms — Enrollments One-to-Many One term manages many enrollments.
Terms — Courses One-to-Many One term hosts various courses.
Sections — Students One-to-Many One section has multiple students.
Sections — Lectures One-to-Many One section attends multiple lectures.
Students — Parents Many-to-One Multiple students (siblings) can share a parent record.
Students — Enrollments One-to-Many One student has multiple enrollment records.
Instructors — Courses One-to-Many One instructor conducts multiple courses.
Instructors — Lectures One-to-Many One instructor manages multiple lectures.
Instructors — Announcements One-to-Many One instructor posts multiple announcements.
Courses — Enrollments One-to-Many One course has many students enrolled.
Courses — Lectures One-to-Many One course has multiple lectures.
Courses — Assessments One-to-Many One course contains multiple assessments.
Courses — Announcements One-to-Many One course has multiple announcements.
Courses — Resources One-to-Many One course provides multiple resources.
Lectures — Classes One-to-Many One lecture has multiple class sessions.
Classes — Attendance One-to-Many One class session has attendance per student.
Assessments — Grades One-to-Many One assessment has grade entries per student.

📊 Analytical Queries

The SQL script includes 8 analytical queries that demonstrate practical database operations:

# Query Description
1 Enrollment by Department Total students enrolled per department, sorted by highest.
2 In-Progress Courses Count of courses currently in progress for a specific term.
3 Late Attendance Number of late attendance records per student.
4 Top Instructor Instructor with the highest number of assigned lectures.
5 Past-Due Assessments Assessments past their due date and not completed.
6 Student Enrollment History Enrollment history and completion status for a specific student.
7 Course Resources Total number of academic resources for a specific course.
8 Class Attendance Students who attended a specific class with arrival times.

Execution screenshots for each query are available in the docs/ directory.
